Guizhou Reeke Rock Tools Co.,Ltd
Click to enlarge
Home Rock Drill YN27C gasoline rock drill
Plug Drill Steel
Back to products
YT24 Air Leg Rock Drill (Jack Hammer)

YN27C gasoline rock drill

ENQUIRY!
Category: Rock Drill
Share:
  • Description
Description

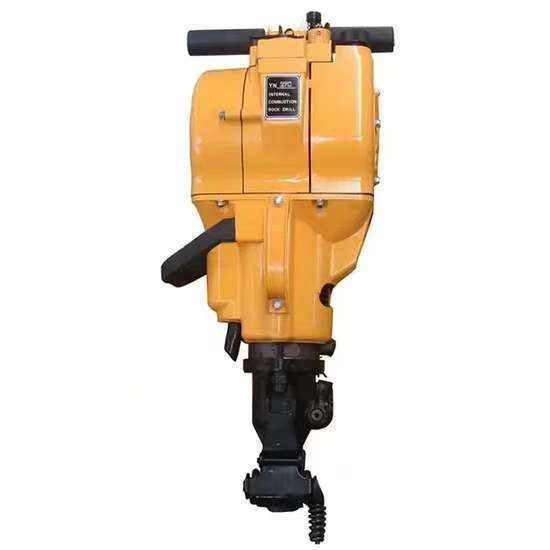

YN27C gasoline rock drill is a high efficient drill machine. It adapt to outside situations where there is no water, no electronic power and no air compressor. It can be used as a tool for breaking, percussive drilling, tamping splitting or ramming.

Parameter:

Model YN27C
Cylinder Diameter*stroke of piston 58*70mm
Rotating speed of engine ≥2450R/min
Engine displacement 185cm³
Drilling Speed ≥250mm/min
Max. drilling depth 6m
Oil consumption ≤0.12L/min
Tank capacity ≥1.14L
Mixture ratio of gasoline and lubricating oil(in volumes) 12:1
Shank size Hex22*108mm
Rotating speed of drilling rod ≥200R/min
Type of engine single cylinder, air cooled two strokes
Type of carbretor handle needle valved, no floating type
Ignition system controllable silicon, con-tactless system
Cealrance of spark plug 0.5-0.7mm
Net Weight 27kg
Dimension 746*315*229mm

Related products

YT28 Pneumatic Air Leg Rock Drills

Rock Drill
YT28 pneumatic drill adopts the design technology of modern rock drill and compares with similar products it has high efficiency, low noise, light weight, good economic effect and fast speed advantages. The machine is most suitable for drilling in large and medium size mines and tunnels.
ENQUIRY!

YT24 Air Leg Rock Drill (Jack Hammer)

Rock Drill
YT24 Air-leg Rock drills is an ideal tools for drilling blast-holes operations small and medium-sized quarries, mines. Combined with B22 drill rod and drill bit, select drill bits based on the size of bore diameter. Most suitable for drilling horizontal and inclined blast-holes in medium hard and hard rock?the effective hole depth up to 5m. Based on roadway cross section size?it is suitable with the corresponding type of FT140B Air Leg. YT24 rock drill is light weight, high drilling efficiency, low air consumption, small vibration, easy handle and maintain, high interchangeable parts with long service life, good economic returns.
ENQUIRY!

YT27 Pneumatic rock drill YT27

Rock Drill
YT27 is a highly efficient pusher leg rock drill. It is mainly used in either rock drilling work such as mining and tunneling, or in railway, water conservancy construction projects and stone work. It is suitable for wet drilling on hard and medium hard rock, or for drilling horizontal or inclined blast holes. YT27 can be equipped with pusher leg FT160A and FY250 lubricator.
ENQUIRY!
