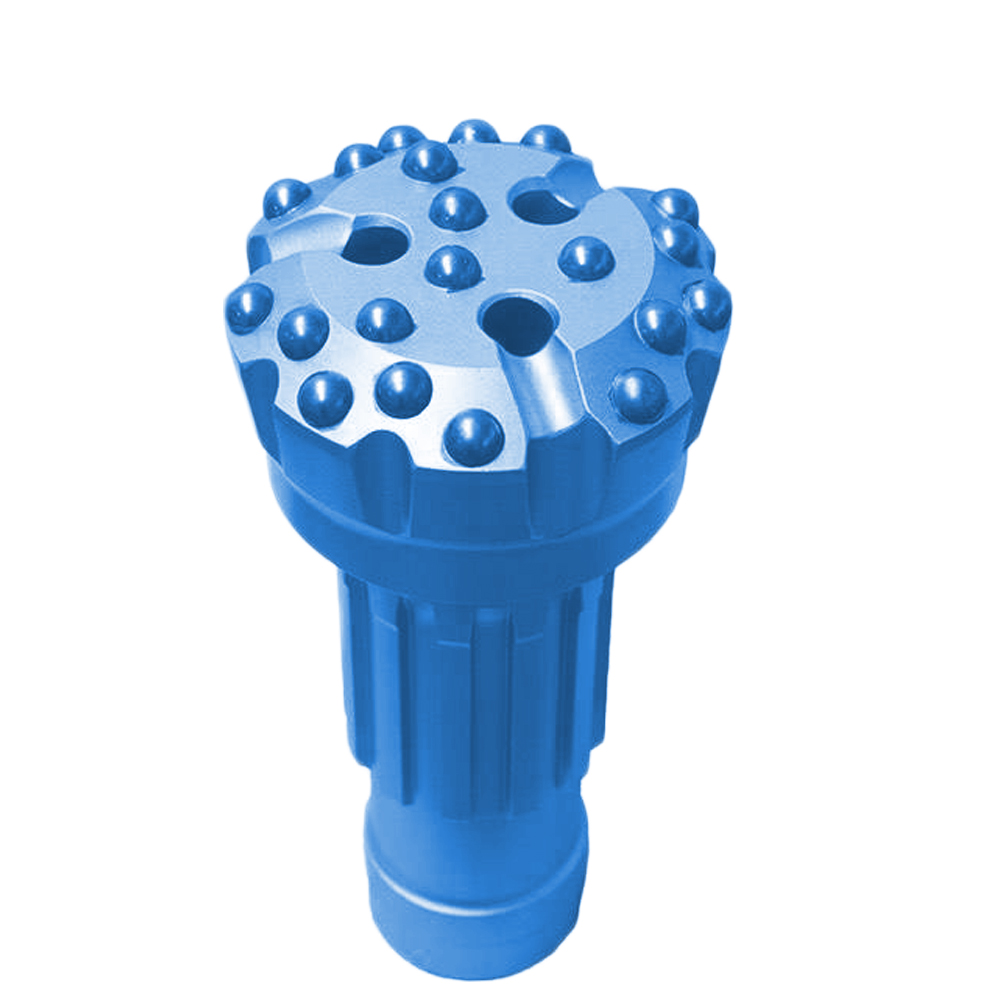

DTH BIT FOR 6”DTH HAMMER DHD360/QL60/MISSION60/SD6/COP64
DTH tools is Widely used in open-pit mining, water wells, foundation construction, slope support and other scenes, using pneumatic, through air conduction to the drill pipe, drill pipe conduction to the impactor, the impactor impacts the piston under the action of air, and the piston drives the drill bit, thus achieving the purpose of drilling.
Face:flat face / concave face/convex face
Diameter:165-203mm
Shank:DHD350/QL50/MISSION50/SD5/COP54
Description
Related products
DTH BIT FOR 4”DTH HAMMER DHD340/QL40/MISSION40/SD4/COP44
DTH tools is Widely used in open-pit mining, water wells, foundation construction, slope support and other scenes, using pneumatic, through air conduction to the drill pipe, drill pipe conduction to the impactor, the impactor impacts the piston under the action of air, and the piston drives the drill bit, thus achieving the purpose of drilling.
Face:flat face / concave face/convex face
Diameter:115-135mm
Shank:DHD340/QL40/MISSION40/SD4/COP44
DTH BIT FOR 8”DTH HAMMER DHD380/QL80/MISSION80/SD8/COP84
DTH tools is Widely used in open-pit mining, water wells, foundation construction, slope support and other scenes, using pneumatic, through air conduction to the drill pipe, drill pipe conduction to the impactor, the impactor impacts the piston under the action of air, and the piston drives the drill bit, thus achieving the purpose of drilling.
Face:flat face / concave face/convex face
Diameter:203-254mm
Shank:DHD350/QL50/MISSION50/SD5/COP54
DTH BIT FOR 5”DTH HAMMER DHD350/QL50/MISSION50/SD5/COP54
DTH tools is Widely used in open-pit mining, water wells, foundation construction, slope support and other scenes, using pneumatic, through air conduction to the drill pipe, drill pipe conduction to the impactor, the impactor impacts the piston under the action of air, and the piston drives the drill bit, thus achieving the purpose of drilling.
Face:flat face / concave face/convex face
Diameter:140-178mm
Shank:DHD350/QL50/MISSION50/SD5/COP54
DTH BIT FOR CIR90/100/110/120
DTH tools is Widely used in open-pit mining, water wells, foundation construction, slope support and other scenes, using pneumatic, through air conduction to the drill pipe, drill pipe conduction to the impactor, the impactor impacts the piston under the action of air, and the piston drives the drill bit, thus achieving the purpose of drilling.
Face:flat face / concave face/convex face
Diameter:90-130mm
Shank:CIR90/CIR100/CIR110/CIR120
