7 7/8″IADC 412/415/642/ 645/542/545
Back to products
12 1/4″IADC 642/ 645/542/545

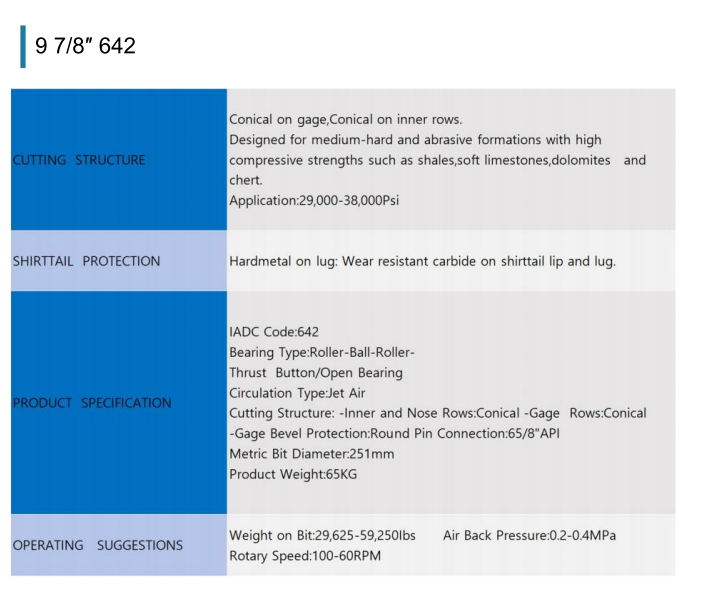

9 7/8″IADC 412/415/642/ 645/542/545

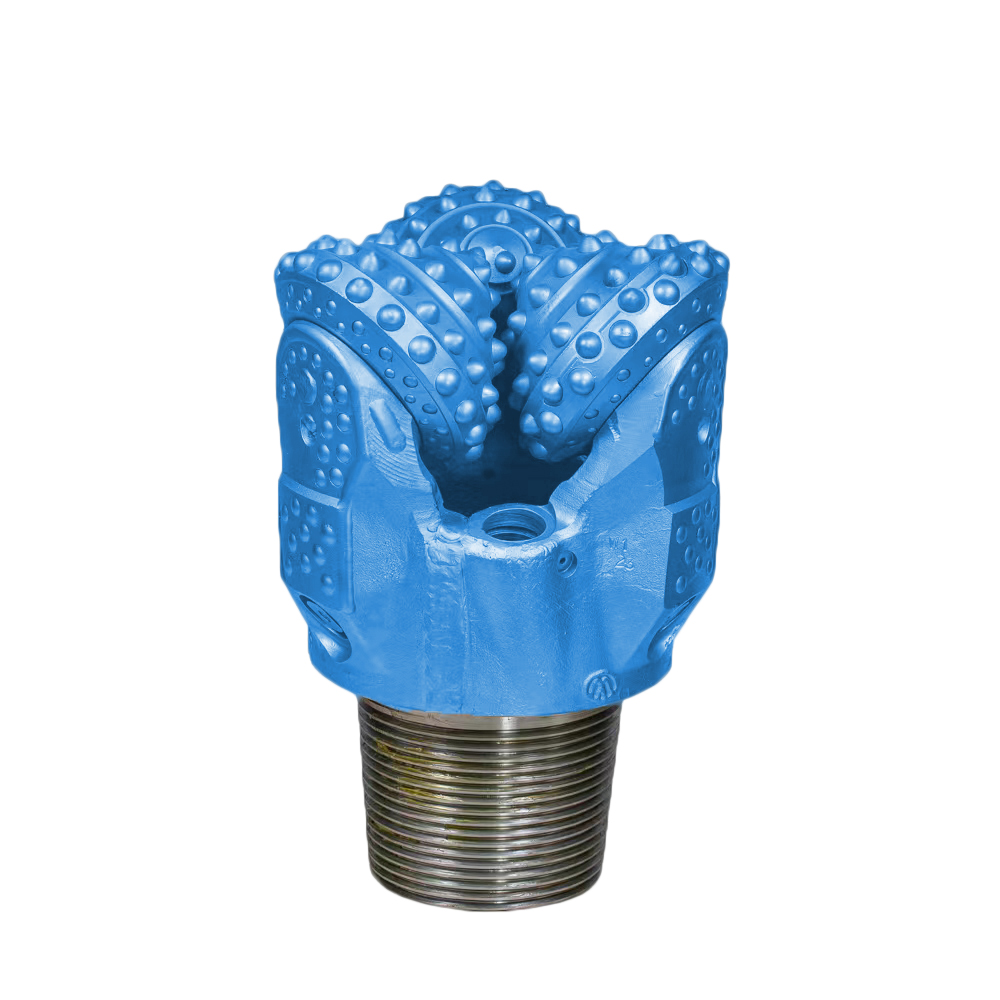

Tricone bits are the most widely used drill bits and are suitable for a variety of formations from soft to hard. The tricone bit has low torque when breaking rock, rotates smoothly, and causes little harm to drilling tools and ground equipment: the working edge is longer than that of a scraper bit, which reduces wear and extends the service life.



IADC Code:642

Bearing Type:Roller-Ball-RollerThrust Button/Open Bearing

Circulation Type:Jet Air

Cutting Structure:-lnner and Nose Rows:Conical-Gage

Bevel Protection:Round Pin

Connection:6 5/8″APi

Metric Bit Diameter.251mm

Product Weight:65KG

ENQUIRY!
Category:
Description

Related products

6 3/4″IADC 642 645

Tricone bits are the most widely used drill bits and are suitable for a variety of formations from soft to hard. The tricone bit has low torque when breaking rock, rotates smoothly, and causes little harm to drilling tools and ground equipment: the working edge is longer than that of a scraper bit, which reduces wear and extends the service life. IADC Code:642/645 Bearing Type:Roller-Ball-Roller- Thrust Button/Open Bearing circulation Type:Jet Air PRODUCT SPECIFICATION Cutting Structure:-Inner and Nose Rows:Conical -GageRows:Conical Gage Bevel Protection:Round Pin Connection:31/2"AP Wetric Bit Diameter:171mm Product Weight:20KG
ENQUIRY!

12 1/4″IADC 642/ 645/542/545

Tricone bits are the most widely used drill bits and are suitable for a variety of formations from soft to hard. The tricone bit has low torque when breaking rock, rotates smoothly, and causes little harm to drilling tools and ground equipment: the working edge is longer than that of a scraper bit, which reduces wear and extends the service life.   IADC Code:645 Bearing Type:Roller-Ball-Roller-Thrust Button/Sealed Bearing circulation Type:Jet Air Cutting Structure:-lnner and Nose Rows:Conical -Gage Rows:Ovoid Pin Connection:6 5/8"API Bit Diameter:311mm(12 1/4") Product Weight:100KGS
ENQUIRY!

7 7/8″IADC 412/415/642/ 645/542/545

tricone bits are the most widely used drill bits and are suitable for a variety of formations from soft to hard. The tricone bit has low torque when breaking rock, rotates smoothly, and causes little harm to drilling tools and ground equipment: the working edge is longer than that of a scraper bit, which reduces wear and extends the service life.   IADC Code:412/415/642/ 645/542/545 RODUCT SPECIFICATION OPERATING SUGGESTIONS Bearing Type:Roller-Ball-Roller- Thrust Button/Sealed Bearing Circulation Type:Jet Air Cutting Structure inner and Nose Rows:Conical -Gage Rows:Conical Gage Bevel Protection:Round Pin Connection:4 1/2"APIMetric Bit Diameter:200mm Product Weight:34KG Weight on Bit:15,750-39.380lbs Air Back Pressure:0.2-0.4MPa Rotary Speed:110-80RPM
ENQUIRY!
